Tubular Automatic Backwash Filter

Tubular Automatic Backwash Filter
Tubular Automatic Backwash Filter

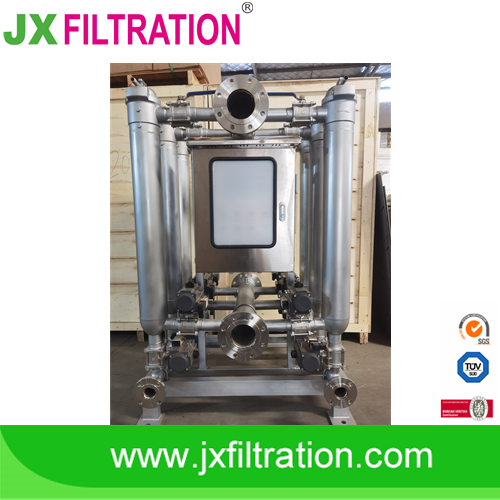

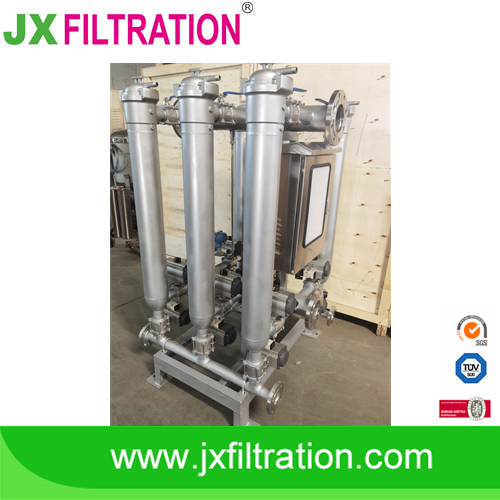

Description

Tubular Automatic Backwash Filter is based on the modular concept design, make a number of standard filtering units into a fully automatic filtration system. It is safe and could flexible increase or decrease the number of units according to the flow needs. Tubular Automatic Backwash Filter operate automatically, no manual cleaning with strong extensibility, can be connected with external high-pressure backwash fluid.

It operates by low pressure differential and adopts V-SLOT wedge filter elements. Backwashing consumption of liquid is less, no manual cleaning, easy to power on maintenance. Tubular Automatic Backwash Filter's main functions including purify fluids, protect critical equipment in the back channel, and recover expensive solid particles with their backwash discharge. It is suitable for low-viscous liquids such as raw water, sewage, low-viscosity slag oil, etc.

Working Principle

The tubular backwash filter is composed of tank body, filter element assembly, equipment connecting pipeline, automatic valve, control cabinet and etc.

  • A plurality of filter tubes are arranged inside the filter housing, and the dirty liquid flows from the outside of the filter tube to the inside of the filter tube, and finally flows out from the liquid collection cavity of the filter.
  • The control adopts pressure difference/time control (pressure difference priority). When the pressure difference between the inlet and outlet of the filter reaches the set pressure difference limit, the filter enters the reverse flushing process. The filter tube unit that needs cleaning stops filtering and performs backwashing.

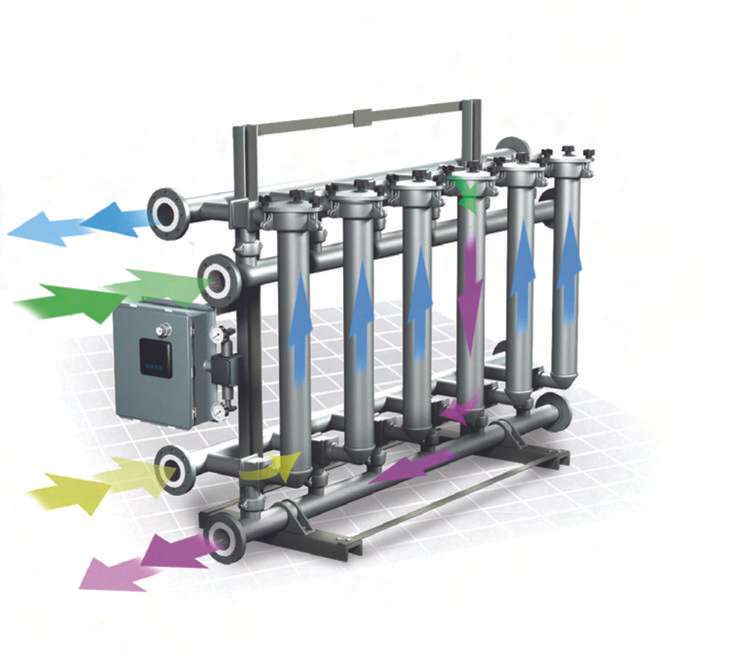

Filtration process

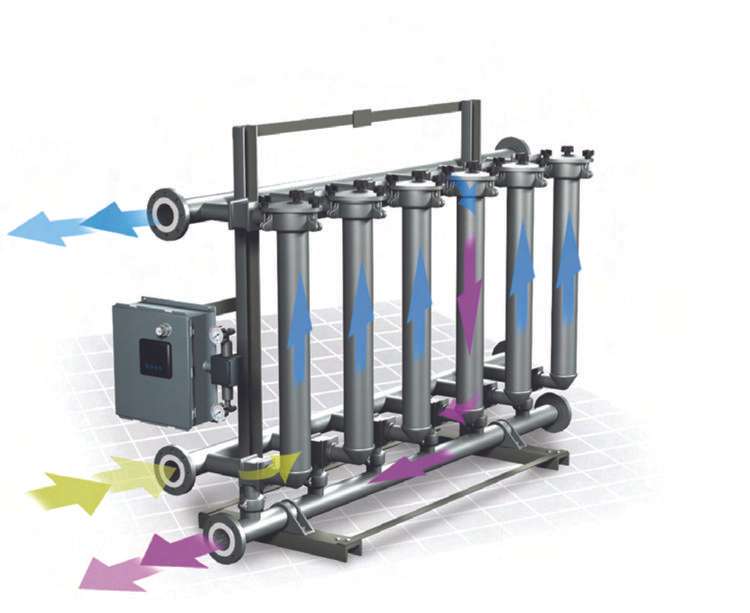

Backwash process

Features

  • High flow rate conditions can still ensure high-precision filtration (as low as 1 micron).
  • Suitable for various process liquids.
  • No need to use disposable media (including filter bags and consumables) to reduce disposal costs, material losses.
  • Modular and expandable system, can freely increase or decrease the number of filter elements according to different working conditions.
  • The filtering system can select the corresponding application requirements according to the user's different working conditions.
  • Automatic cleaning and discharge.
  • A wide range of working pressures enable reliable operation and performance up to 1000 psi (69 bar).

Technical Data

Model:   JX3-JX24
The number of filtering elements:   3--24
Filter elements type:  V-shape wire type
Optional precision (um): 20-3000
Unit filter area (m): 0.267/0.377
Shell material: SS304/316L/CS etc.
Suitable for Viscosity (cp):1-50
Suitable for temperatures (C): 250
Design Pressure (MPa):1.6/2.5/4.0
Optional cleaning start mode: Time start, pressure difference start

Application


Application of the industry: petrochemical, water treatment, paper making and etc.
Application of liquid types: cooling circulating water, petrochemical diesel, gasoline, naphtha, water treatment raw water, process water, clean water, ultra-clean water, spray water, water needle water.
